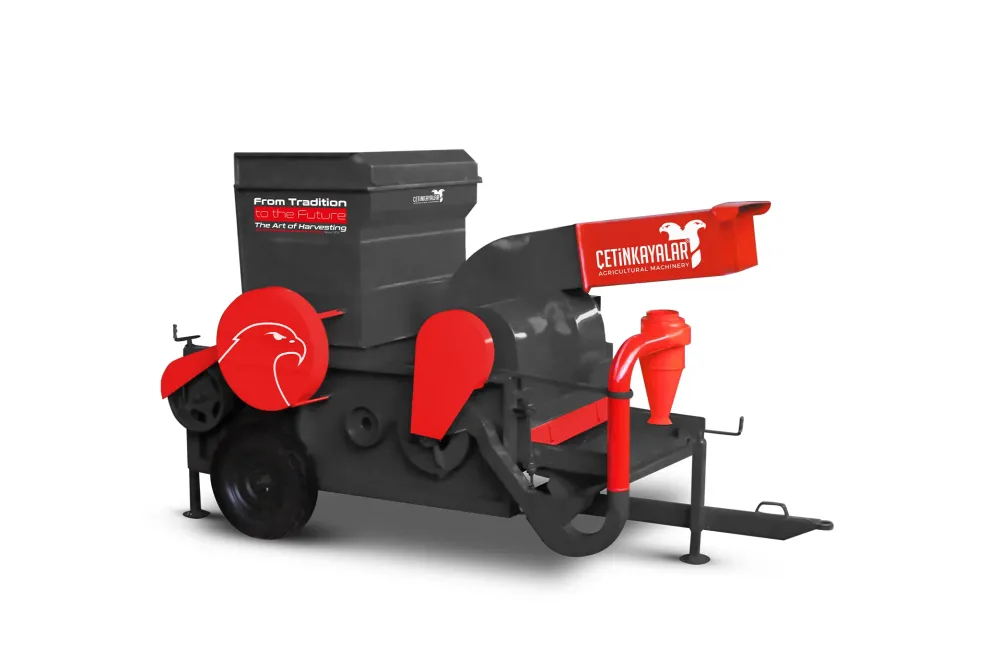

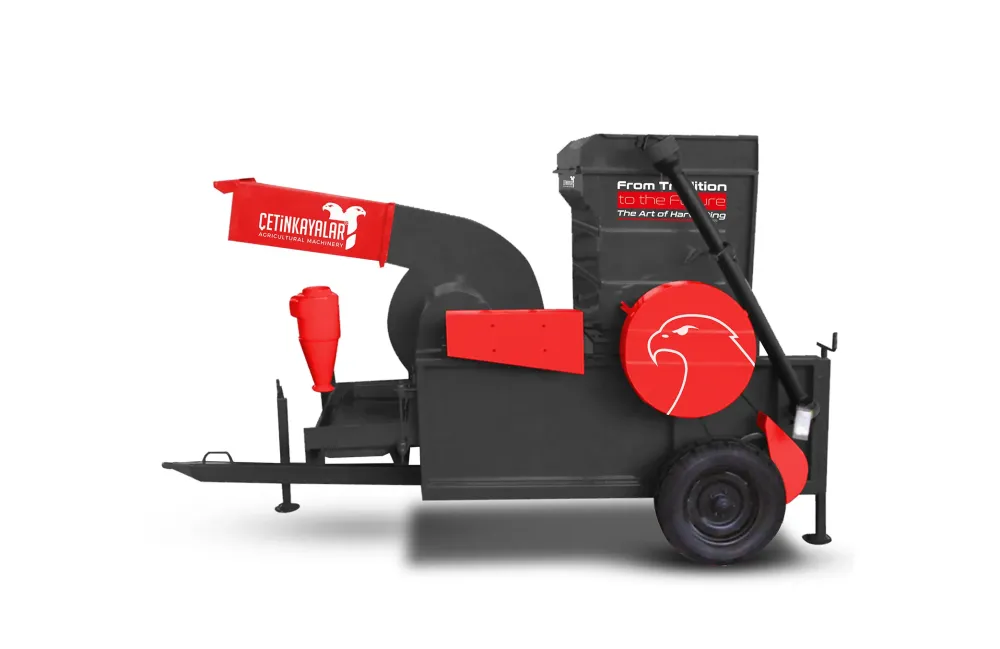

PTO Driven Multi Crop Thresher NCK-01 HM

PTO Driven Multi Crop Thresher NCK-01 HM - PTO Driven Multi Crop Thresher

NCK-01 HM PTO Driven Multi Crop Thresher (Bagging Type): Power and Precision

Manufactured with the assurance of Cetinkayalar Agriculture, the NCK-01 HM is a robust harvesting solution that combines traditional durability with modern engineering. This PTO Driven Multi Crop Thresher, designed to replace old-fashioned belt-driven systems, is the farmer's ultimate partner for maximum field performance and fuel efficiency.

Uninterrupted Performance with PTO Drive Technology

The PTO Driven Multi Crop Thresher Machine NCK-01 HM derives its power directly from the tractor's Power Take-Off (PTO) shaft. This direct transmission system eliminates the power loss and belt slippage problems often faced in conventional machines. Thanks to our "Shaft-Driven" technology, the torque produced by your tractor is transmitted to the threshing drum without loss. The result is clear: Less fuel consumption, more work done.

A standout feature of this machine is the Combined Pneumatic Bagging System. The harvested grain is filled directly into bags or trailers via a powerful airflow mechanism. This minimizes labor costs and significantly speeds up the harvesting process, ensuring a smooth operation even in peak season.

True Versatility: From Wheat to Pulses

This machine is not just a wheat thresher; it is a versatile "Harvest Factory." In its standard configuration, it flawlessly processes Wheat, Barley, Oats, and Rye. However, thanks to Cetinkayalar engineering, the machine offers exceptional flexibility.

With a simple change of pulleys, belts, and sieves, The PTO Driven Multi Crop Thresher Machine NCK-01 HM transforms into a professional machine capable of harvesting delicate legumes such as Chickpeas, Lentils, Beans, Broad Beans, Vetches, and Cumin. Its precise drum adjustments separate the grain without breaking it, preserving the high market value of your crop.

Heavy-Duty Steel Body and Long Lifespan

We know how tough field conditions can be. That is why we manufactured the body of the NCK-01 HM from reinforced steel to withstand shocks and vibrations. Its solid structure, weighing 1450 kg, minimizes vibration during operation. Equipped with 44 specially hardened drum fingers, it converts even the toughest stalks into straw in seconds while ensuring grain purity.

Technical Specifications and Capacity

Reaching a capacity of 2200 kg/hr, our machine works in perfect harmony with every tractor brand (ranging from 20 hp to 100 hp). The required tractor RPM is only 540, allowing you to work without straining your engine.

• Total Length: 3850 mm

• Drum Width: 1200 mm (Wide drum for fast feeding)

• Bagging System: Pneumatic (Air) System (Anti-clogging)

• Service: Unlimited spare parts and service guarantee.

The NCK-01 HM PTO Driven Multi Crop Thresher is your most profitable investment in the field, offering durability, practical use, and high work efficiency.

Please contact us for more information.

❓ FREQUENTLY ASKED QUESTIONS (FAQ)

1. Which tractors is the NCK-01 HM Thresher compatible with?

The machine is fully compatible with all domestic and foreign tractor brands that have a PTO output and a power range between 20 HP and 100 HP. Thanks to the direct shaft-driven system, it utilizes the tractor's power most efficiently.

2. Can this machine thresh chickpeas and beans?

Yes, it acts as a true Multi-Crop Thresher. By making simple modifications to the sieve and pulley systems on the machine, you can harvest legumes like chickpeas, lentils, beans, and cumin without breaking the grains or wasting the crop.

3. How does the bagging system work? Does it clog?

The NCK-01 HM model uses a "Pneumatic (Air) Bagging System." The cleaned grain exiting the drum is pushed into the bag or trailer by a powerful airflow. This system operates faster than mechanical elevators and minimizes the risk of clogging.
